Glass Door Gas Deck Oven DB-803S

Debei - Your Good Partner
In The Baking Business

Home / Products / Deck Oven / Gas Deck Oven / Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S
Gas Deck Oven

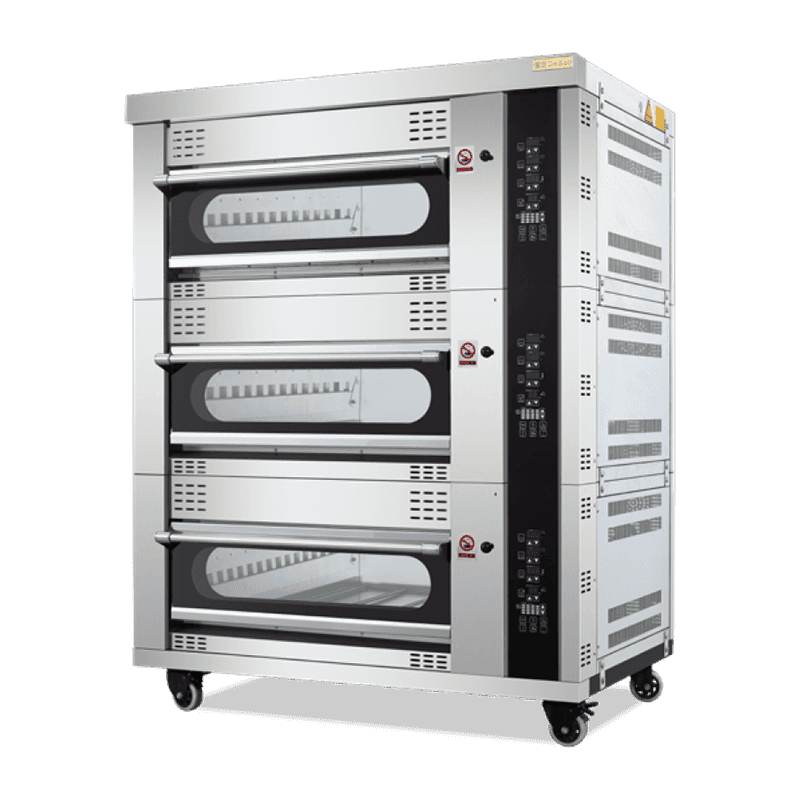

Glass Door Gas Deck Oven DB-803S

Glass Door Gas Deck Oven DB-803S supports multi-deck bakery production where tray capacity and equipment load need to be considered together. The range of tray quantities allows selection according to production requirements.

Core Feature

1. Tray size: Uses 400×600 mm trays for standardized production loading.

2. Tray capacity: Configurations accommodate 2, 2, 2, 3, or 4 trays per deck.

3. Equipment weight: Available configurations range from 230 to 940 kg.

4. Production setup: Multiple capacity options support different bakery output requirements.

Request a Quote
PREV：No previous articleNEXT：Glass Door Gas Deck Oven DB-822

Product
Parameters

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Model

DB-803S

Number of decks

3

Number of trays (per deck)

3

Tray size (mm)

400×600

Weight (kg)

830

Tray layout

3 trays side by side

Voltage (V)

220

Thermal output per deck (kcal/h)

8600

Power (kW)

0.6

Temperature (℃)

0~400

Door-open style

Down and out

Outside plate - Front side

Stainless steel sheets

Outside plate - Other sides

Aluzinc-coated sheet

Dimension (mm) - Length

1800

Dimension (mm) - Width

1040

Dimension (mm) - Height

1825

Inner dimension per deck (mm) - Length

1320

Inner dimension per deck (mm) - Width

690

Inner dimension per deck (mm) - Height

220



View More
OEM/ODM Services
For private-label and project orders, we can assist with logo placement, appearance customization, functional configuration, packaging and related production arrangements based on the confirmed specification.
FAQ
  • Q: Can different deck configurations be supplied?
    A: Configuration can be selected according to the required number of baking levels and the customer's production layout.
  • Q: How should the oven be positioned in a bakery line?
    A: It is normally planned alongside preparation, proofing, cooling and handling equipment according to the site workflow.
  • Q: What type of bakery production is suited to a deck oven?
    A: Deck ovens are commonly specified for bread, pizza, pastries and other products that require controlled deck baking.

Products Recommendation

  • Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S

Case
Showcase

01 / 01
  • Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S
  • Glass Door Gas Deck Oven DB-803S

  • Applications

    Bakery manufacturers: Include the oven in commercial bakery equipment packages for different production setups.
    Kitchen equipment suppliers: Coordinate installation with preparation benches, proofers and other baking equipment.
    Project contractors: Select suitable deck arrangements for bakery production areas and foodservice facilities.
